Butt Welding (Tig Welding) PERT-AL-PERT/PEX-AL-PEX Pipe Production Line

But welding (Tig Welding) PEX-AL-PEX/PERT-AL-PERT Pipe Production Line

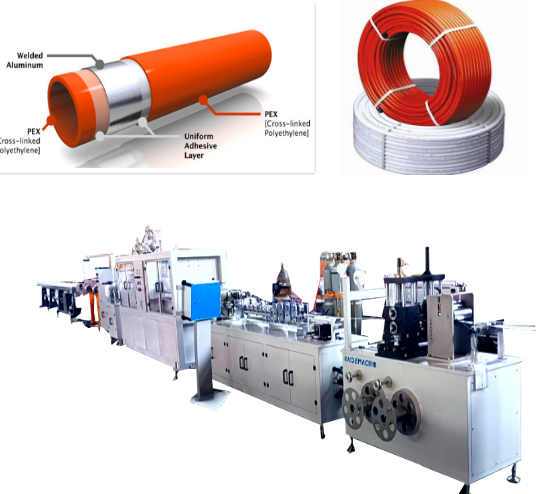

The butt welding Al-plastics pipe line, produce five layers butt welding PEXB-Al-PEXB or PERT-AL-PERT pipe, which adopt argon arc welding mode.

Production range from OD16mm to 75mm.

Stable Production Line Speed: 30m/min-35m/min.

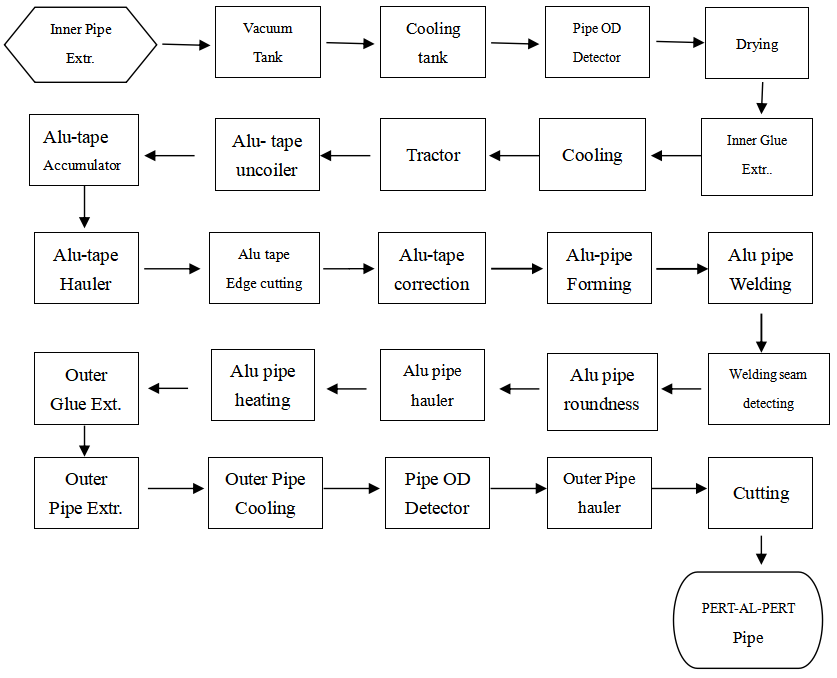

The production process for

butt welding (Tig welding) PEX-AL-PEX/PERT-AL-PERT Pipe :

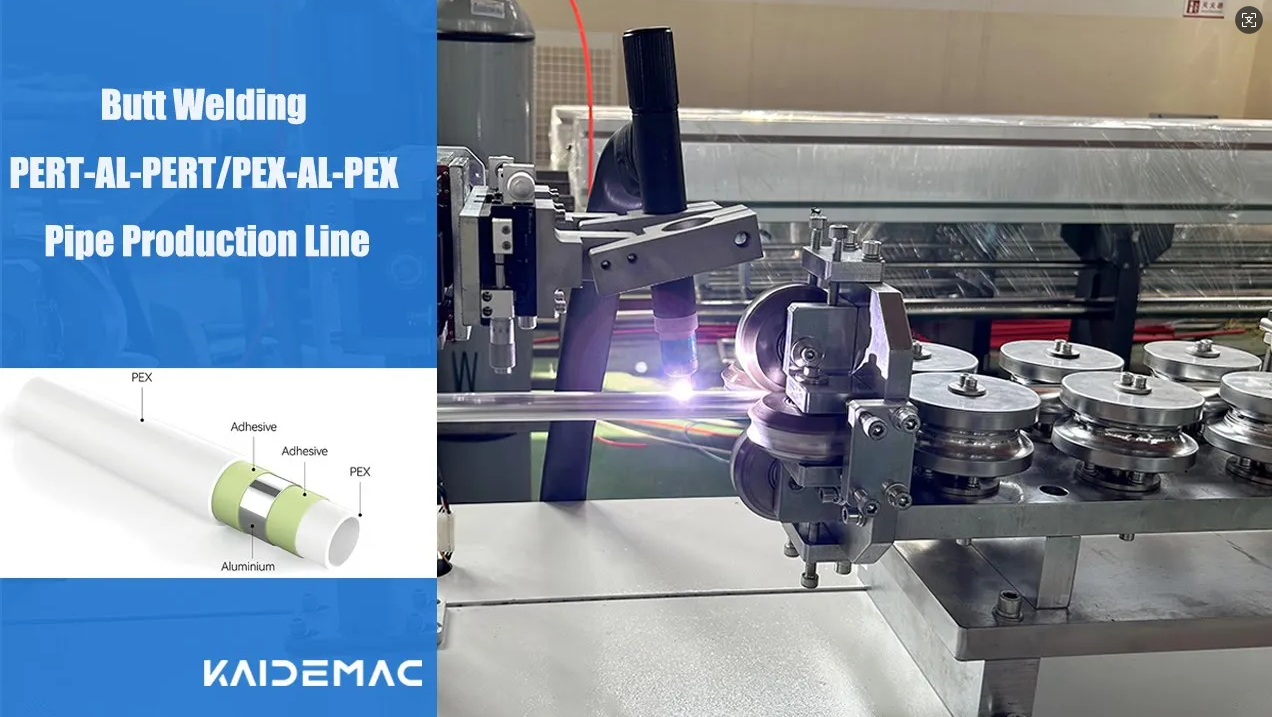

Welding method: Argon arc Butt welding (Tig welding)

Welding width range: 45-235 (mm)

Welding thickness range:  0.2-3 (mm)

The control mode is automatic, and the splicing machine adopts an automated operation design. The aluminum strip that needs to be spliced only needs to be placed in the 2-side clamping system. The remaining work examples

For cutting, seam alignment, and welding, there is no need to consider accuracy again. The entire mechanism will automatically control the accuracy to ensure that the operation is easy, the welding is successful in one attempt, and the weld seam is beautiful and firm
