Flat Drip Irrigation Tape Production Line| Drip Irrigation Tape Extrusion Line

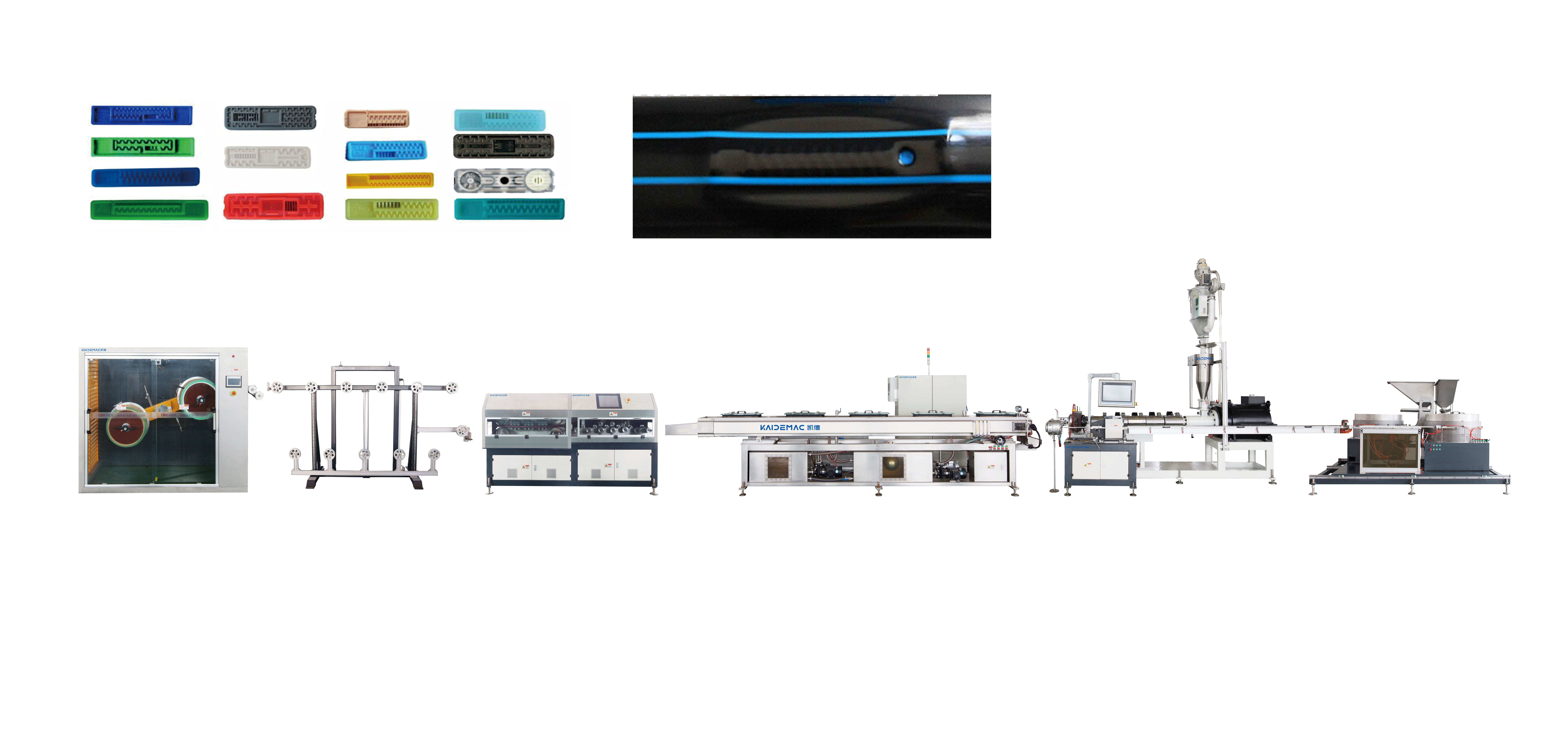

The flat drip irrigation tape production line is used to produce drip irrigation tape, with thickness 0.15mm-1.1mm, pipe diameter16mm, 20mm,22mm, this dripper sorter of this drip irrigation pipe production line can adapt various dripper type, such as AAS, DRTS, Nano etc. This drip irrigation tape line includes dripper sorter and conveying system, cross type die head moulds, high efficient extruder, vacuum tank, cooling tank, drip irrigation tape and holes punching system, automatic coiler,etc. The production line speed can reach up to 250m/min for 16x0.2mm, with driper space 300mm. This drip irrigation tape production line has exported to many countries, such as Iran, Uzbekistan, Russia, Mexico, Ukraine, Korea, etc.
Availability:
  • KDPD

  • KAIDE

  • 8650536

Product Description

Optimized on thousands of high speed pipe extrusion and co-extrusion technologies and after several key improvements, this independently developed drip irrigation tape production line has become the most reliable pilot model with the top speed in China.

Tehnical Data

Model

Extruder

model

Production

speed

Dripper Identify

speed

Thickness

(mm)

Hole punching

speed

Nominal

power(KW)

KDPD-Ⅲ

SJ-60/36

250m/min

2000Pcs

0.15-0.6mm

≤950pcs

118

KDPD-Ⅱ

SJ-60/36

180m/min

1100Pcs

0.15-0.6mm

≤750pcs

93

KDPD-Ⅰ

SJ-60/36

80m/min

1100Pcs

0.6-1.2mm

≤750pcs

98

Dripper sorting system of Flat Drip Irrigation Tape Machine

drip irrigation pipe machine

(1) Most advanced detecting technologies are applied,such as nanoscale laser identifying device and dripper anti-direction rejecting device, ensuring drippers in production are 100% qualified.

(2) Dripper Sorting Speed:2000pcs/min


Gravimeter system is equipped on Flat Drip irrigation Tape Line

flat drip irrigation tape machine

High precise control system of pipe weight per meter is applied in this flat drip irrigation tape line. Such device will feed material precisely according to the weight per meter and line speed changing; to get a precise gram weight control of produced pipe. Which can shorten the start-up time and save raw materials.


Haul-off machine & Punching Machine

The servo driven haul-off machine of this drip irrigation pipe machine adopted servo control, and the hauloff speed can be synchronously adjusted according to the production requirement, with stable and reliable pulling, low noise.


Punching machine

This drip irrigation pipe machine is equipped with online laser detecting system, once the system detects the not-punched pipe, it will cut off the pipe automatically, meanwhile change over the coiling work position, and report the waste pipe conditions on time.


Automatic Winding Machine

drip irrigation pipe extrusion line

(1) Automatic winding machine is driven by servo motor and controlled by SIEMENS PLC system.

(2) Application of servo traversing and tension control system in this flat drip irrigation tape line, can ensure the high sync condition of winding speed and line speed, makes the final coils even and neat.

drip irrigation pipe extrusion machine

(3) During production, the winder can cut pipes and change reels automatically according to the setting length. And also print length tag of each coil.


Siemens PLC Control System Equipped

Advanced Siemens PLC control system wasapplied into this Flat drip irrigation tape line.

Intelligent functions of this system, such as whole line sync control without any deviation. One touch speed increasing or decreasing control,high precision temperature control etc,can ensure the reliable and convenient operation of the line.
