The ppr pipe production line is used to produce water supply ppr pipe for hot/cold water transportation, the pipe diameter ranges are 20mm-63mm, 20mm-110mm, up to 160mm, etc, the standard pressure ratings PN6,PN12, PN20,PN25; the produced pipes are mainly applied in the fields of building construction water supply system, air conditioner water supply system,etc. The ppr pipe extrusion line speed can reach up to 30m/min for 20x2.8mm, The ppr pipe machine adopts the specialized high efficient wear-resistant extruder for ppr raw materials, which ensures high speed extrusion and guarantee the long service life of extruder.

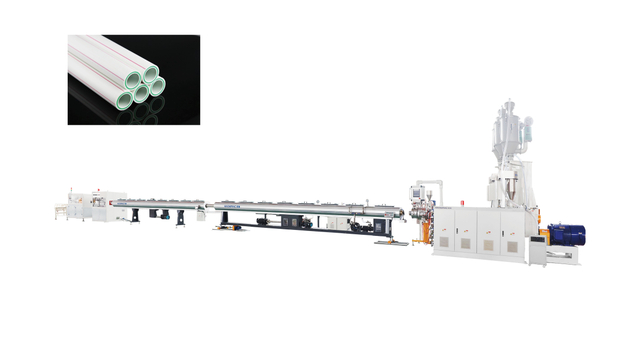

This pipe production line is used to produce 20-63mm or 20mm-110mm, 75mm-160mm, PPR glassfiber PPR pipes or 3 layer PPR pipes, with production speed up to 30m/min for 20mm×3.4mm pipe size, KAIDE is the birthplace of the first high speed pipe line in China, who can provide the stable performance and high speed line at very good price. The glassfiber ppr pipe making machine adopts high efficient extruder, three layers adjustable composite pipe die head, suffcient cooling system, stable haul-off machine,high speed pipe cutting machine, siemens PLC control system, etc

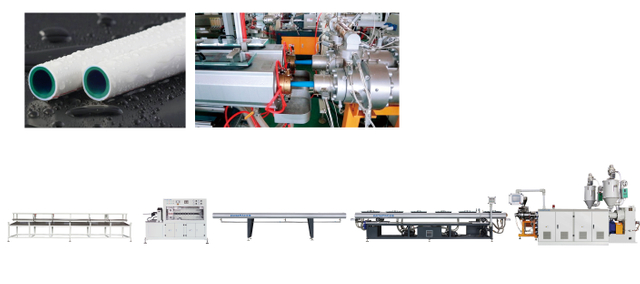

The double strand ppr pipe production line is used to produce water supply double layers (double color) ppr pipe for hot/cold water transportation, the pipe diameter ranges are 20mm-32mm, the standard pressure ratings PN6,PN12, PN20,PN25; the produced pipes are mainly applied in the fields of building construction water supply system, air conditioner water supply system,etc. The double strand ppr pipe extrusion line speed can reach up to 35m/min*2=70m/min for 20x2.8mm. This line effectively improve the working efficiency, save human power and raw materials consumption. After do some modification, this line also can produce two layers hdpe pipe, very flexible.

The Anti-UV Four Layers Glassfiber PPR Pipe Production Line|PPR Pipe Making Machine is used to produce 4 layers pipe, from inside layer to skin layer, it is: ppr raw materials, glassfiber raw materials, ppr raw materials, PE raw materials, the pipe diameter range: 20mm-63mm, 20mm-110mm, etc. This kind of pipe has the features of high strength, high temperature resistance, and the PE skin layer is functioned to anti Ultravoilet, to protect the inner PPR pipe, not sunburning if installed outdoor, which is mostly applied in the fields of building construction, hot water transportation, air conditioner system main pipeline,etc.

The PPR-AL-PPR multi-layer composite pipe production line is used to produce 5-layer PPR aluminum-plastic pipes with a diameter of 16-63mm. The produced PPR aluminum pipes are widely applied in potable water pipeline systems which are hygienic and non-toxic. The PPR-AL-PPR pipe combines the rigidity of metal with the flexibility and pressure resistance of plastic. Pipes can afford either high pressure or high temperature -40℃-95℃. The outer PPR layer of the PPR-AL-PPR pipe production line is thicker than the inner PPRlayer, so the output of the outer layer extruder of PPR is larger than the inner layer.

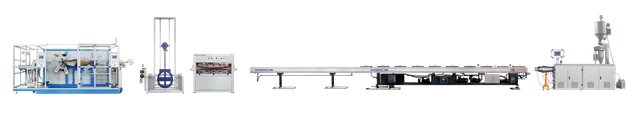

HDPE pipe production line machine configuration is different as per produced pipe diameter range. For small diameter range like 20-63mm, there are several different speed models for option, the highest production speed is up to 60m/min for 20×2.0mm HDPE pipes.
Big diameter HDPE pipe extrusion line can be designed as two layer co-extrusion type or 3 layer co-extrusion type.
Pipe coiler is equipped as an option, to coil pipe size from 16-32mm, or 20-63mm or much big up to 110mm.
