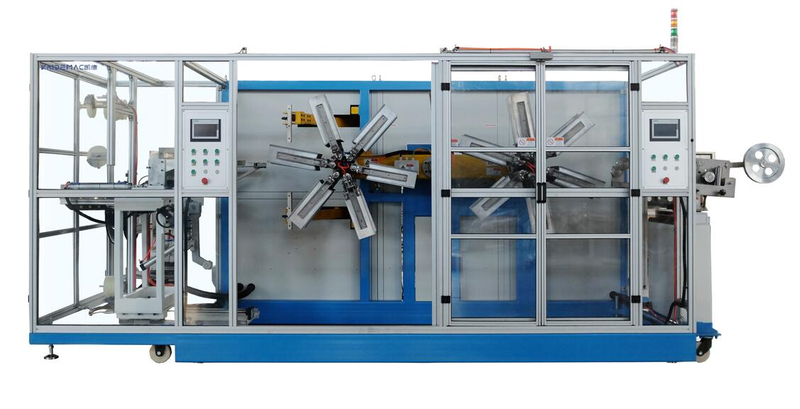

QDSJ-1200 Fully Automatic Pipe Coiler | Automatic Pipe Winder | PE-RT Pipe Winder

This automatic pipe coiler is mainly used to coil the PE pipe, PE-RT pipe, PE-Xb pipe, oxygen barrier EVOH pipe at high line speed such as 40m/min-80m/min, it is fully automatic type, no need operator to do the job of reel changing and coil unloading. KAIDE is the earliest manufacturer in China, who start to research and develop automatic coiler, this coiler has been sold to many pipe factories, such as +GF+ Georg Fischer,ERA pipe group, Junxing Pipe Group, Rifeng Pipe Group, VESAN Pipe Group, Chinaust, RH Pipe factory, etc. The automatic coiler still adopts servo traversing system and PLC intelligent control; It can realize a series of intelligent operations, such as automatic pipe accumulating, automatic coil cutting and new coil changing, automatic brake etc,
Availability:
  • QDSJ-200

  • KAIDE

Product Description

This is an automatic coiler, which was first successfully developed in 2011, The automatic coiler adopts servo traversing system and PLC intelligent control; It can realize a series of intelligent operations, such as automatic pipe accumulating, automatic coil cutting and new coil changing, automatic brake etc,

PA pipe automatic coiler

The Pipe Accumulator Introduction

(1) This set of pipe accumulating device is used to accumulate the pipes while changing new coil, avoiding the pipe being harmed when disorderly gathered on the ground.

(2) At the same time, it will automatically control the coiling speed according to the number of stored pipes, so as to realize the synchronization of coiling speed and line production speed.

automatic coiler accumulator


Design Features of Automatic Pipe Coiler

(1) Full-automatic pipe winding machine can realize automatic winding, automatic roll change & cutting, automatic strapping and automatic unloading.

(2) A series of auxiliary devices such as pipe clamping, automatic cutting and pipe end pressing in this winding machine are essential intelligent functions for fully automatic operation of the winder.

(3)Auto packaging device can be customized according to the user’s requirement. The device can realize automatic 3-5 strapping to the coil.

(4) After finishing auto packaging, the auto discharging part will start subsequently. When finish auto discharging, the reel will return to the initial position automatically. No manually intervention during the entire process.



Two Invention Patents for this Automatic Winder

Invention Patent No.:201510368200.7, Invention Patent No.:201510368687.9

 Pipe coiler machine

Technical Data

Model

Pipe Diameter

Dimension

(LXWXH)

Functions

Composition

QDSJ-1200

ф32mm

1100×2300×2300mm

Auto roll changing, cutting, packaging, discharging

Auto Accumulator+ Auto winder+Auto packaging+Auto discharging

ZDSJ-1200

≤ф32mm

9500×2300×2300mm

Auto roll changing, cutting

Auto accumulator+ Auto winding

automatic pipe packaging machine
