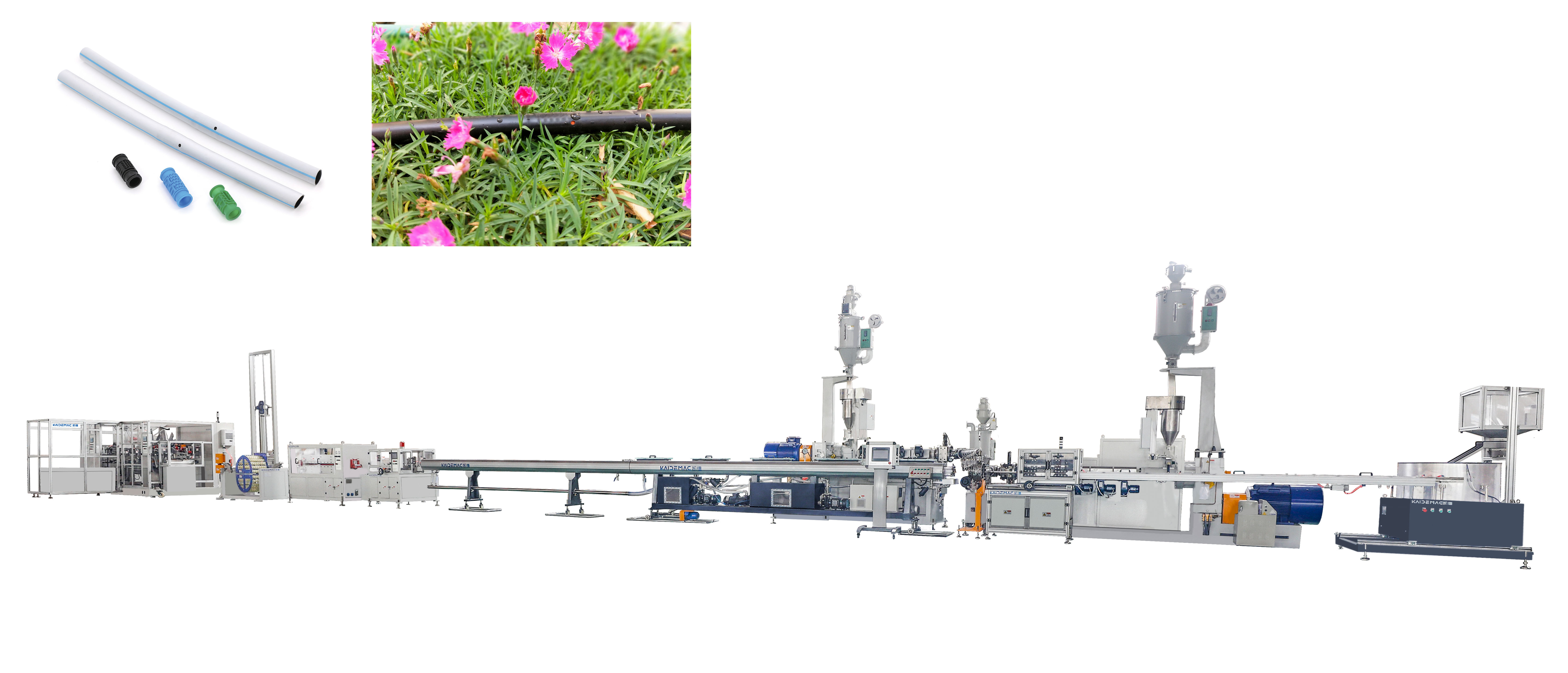

Round Drip Irrigation Pipe Production Line|Drip Irrigation Pipe Extrusion Line

This pipe production line is used to produce drip irrigation pipes, with round dripper inside. Production speed is 50m/min and 100m/min for 16mm drip pipe at 30cm dripper space. The drip irrigation pipe diameter range is 12mm, 16mm,20mm, the pipe thickness range is 0.5mm-1.5mm. The final manufactured drip irrigation pipe is applied in the fields of green house, fruit tree, cotton irrigation,etc. KAIDE has produce hundreds of lines for domestic and overseas customers, with rich experience to manufacture this drip irrigation pipe machine. The dripper space can be flxible adjusted from 10cm to 100cm, and the line is easy operation, controlled with intelligent Siemens PLC Control system.
Availability:
  • KDDG-60,KDDG-75

  • KAIDE

  • 8477800000

Product Description

This pipe production line is used to produce drip irrigation pipes, with round dripper inside, diameter range 12mm-20mm, Thickness range 0.5mm-1.5mm, for farmland irrigation, greenhouse irrigation system,etc.

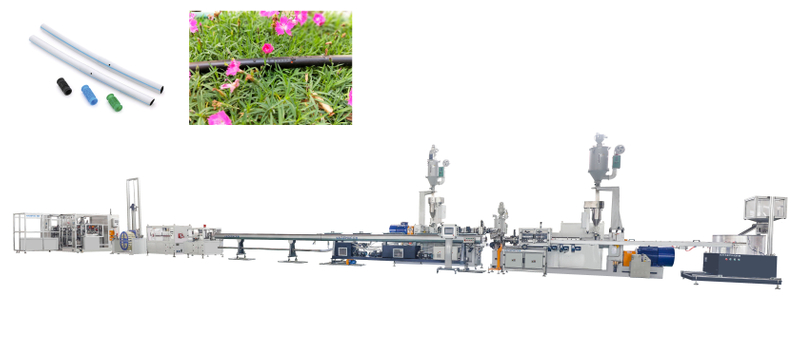

 drip irrigation pipe production machine

TECHINICAL DATA

Line Model Screw Diameter L/D Ratio Production Scope Production Speed Nominal Power
 KDDG-75  75mm  36:1  12-20mm  100m/min  135KW
KDDG-60
60mm 36:1 12-20mm 50m/min 90KW

By few machine cofiguration changing, normal smooth HDPE pipes can be produced with one same line; And also two layer or 3 three layer structure drip pipe can be produced, by co-extrusion technology.


Dripper sorting & inserting machine

(1) Driven by servo motor and controlled by PLC system, dripper space is adjustable, directly set on PLC

(2) Dripper sorting disc made of high quality steel ;Auto feeder with dripper lack alarm.


Extruder & Cross Die Head

Drip Irrigation Pipe production line

(1) Extruder driven by AC motor; with ABB converter, Schneider electric elements

(2) SIEMENS PLC control system, to sync control with dripper inserting speed and haul-off speed

(3) Special designed cross die head; high quality mould steel 40Cr, which is processed by high precision CNC machinery.


Punching Machine

(1) Drive by servo motor and servo controller, with high precision punching degree

(2) Auto tracking dripper positon

(3) Standard 2 holes punching,4 holes and 6 holes also available.


Haul-off Machine and Winding Machine

drip irrigation hose making machine

(1) The Haul-off machine was equipped with ABB converter, with wear-resisting belt; multi-group rollers pneumatic clamping with force adustable, haul-off speed is synchronous with extruder rpm.

(2) The winding machine was equipped with Siemsn servo traversing unit, for tidy and neat coiling , also with tension controller device to adjust the winding speed, separately controlled by Siemens PLC Control system.

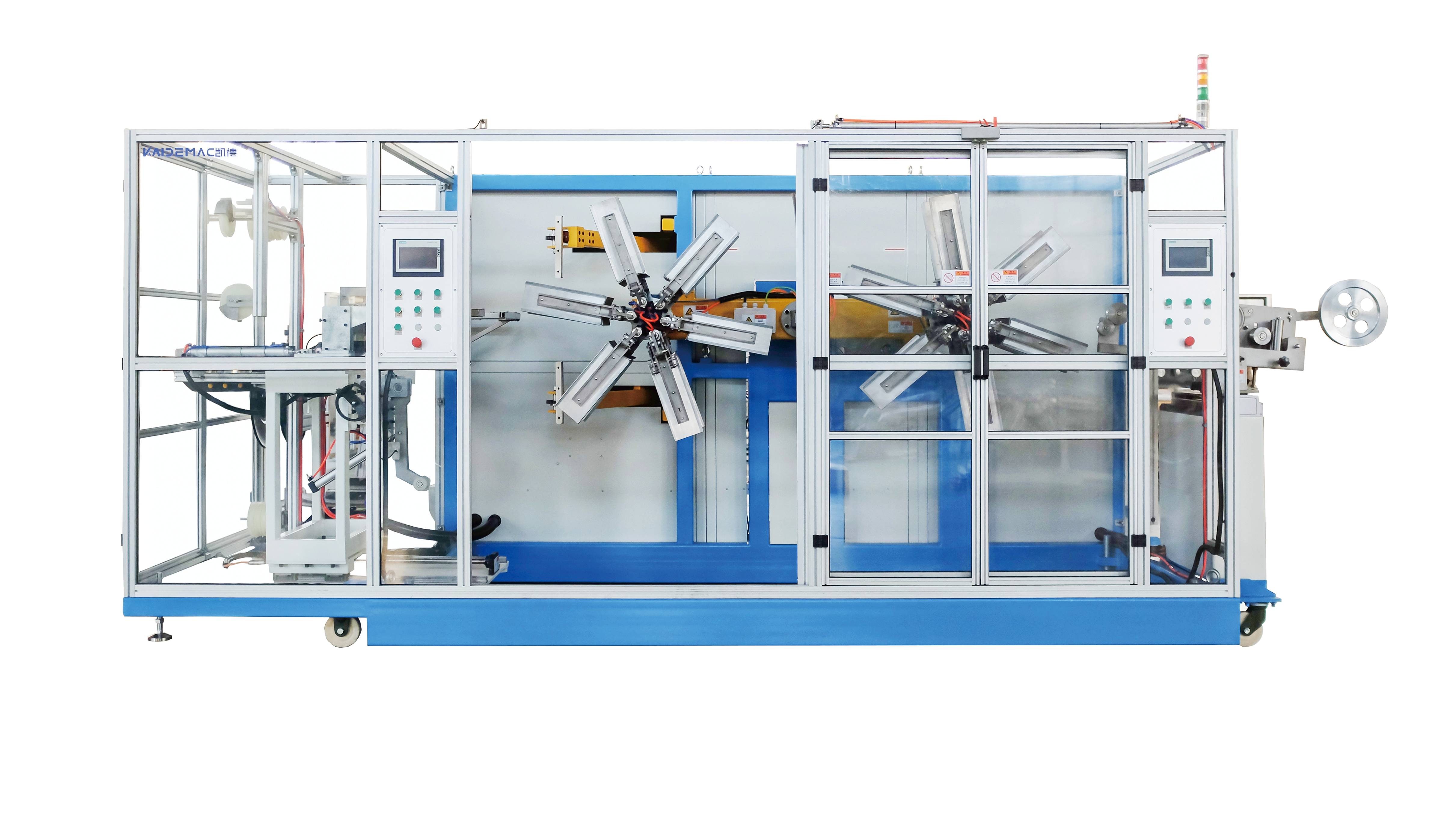

(3) For the high speed 100m/min, the automatic coiler machine will be equipped, with the function of auto winding, auto reel change, and auto cutting, auto strapping, auto coil unloading.


Welcome to contact us right now to know more information !
